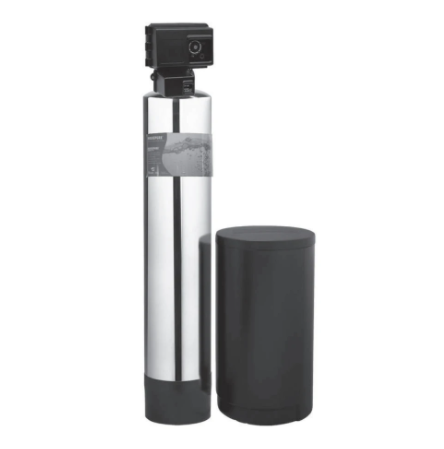

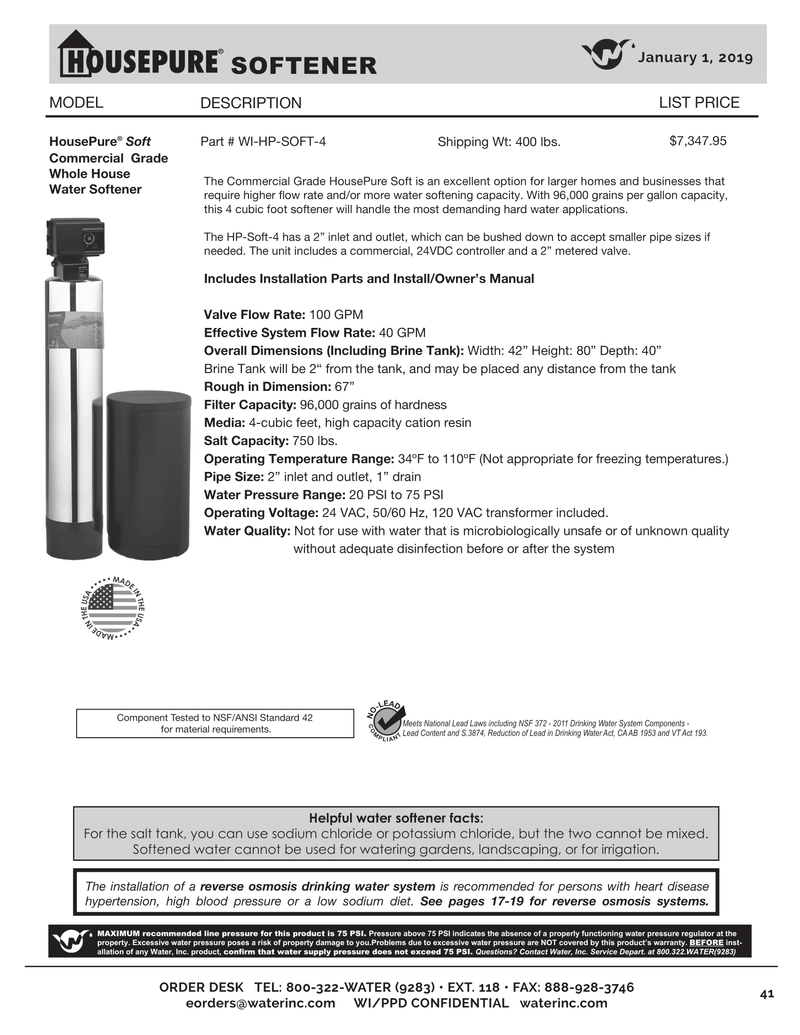

The Commercial Grade HousePure Soft is an excellent option for larger homes and businesses that require higher flow rate and/or more water softening capacity. With 96,000 grains per gallon capacity, this 4 cubic foot softener will handle the most demanding hard water applications.
The HP-Soft-4 has a 2” inlet and outlet, which can be bushed down to accept smaller pipe sizes if needed. The unit includes a commercial, 24VDC controller and a 2” metered valve.
Includes Installation Parts and Install/Owner’s Manual
Valve Flow Rate: 100 GPM
Effective System Flow Rate: 40 GPM
Overall Dimensions (Including Brine Tank): Width: 42” Height: 80” Depth: 40” Brine Tank will be 2“ from the tank, and may be placed any distance from the tank
Rough in Dimension: 67”
Filter Capacity: 96,000 grains of hardness
Media: 4-cubic feet, high capacity cation resin
Salt Capacity: 750 lbs.
Operating Temperature Range: 34ºF to 110ºF (Not appropriate for freezing temperatures.)
Pipe Size: 2” inlet and outlet, 1” drain
Water Pressure Range: 20 PSI to 75 PSI
Operating Voltage: 24 VAC, 50/60 Hz, 120 VAC transformer included.
Water Quality: Not for use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
